Cotton Bale Wrap Film Compatible with 3‑Row & 6‑Row Pickers

Our cotton bale wrap film is engineered for mechanized cotton harvesting, optimized for 3-row and 6-row pickers, including machine models 7760, 690, and 770.
It offers UV resistance for 6–18 months outdoor storage, high tensile strength, and smooth flow for mechanized wrapping.
Optional RFID tags can be embedded for digital tracking, but the main focus is on durability, weather protection, and machine compatibility.

Each roll wraps 24 cotton bales (~100 kg each) efficiently and reliably.

Cotton bale handling and packaging face several challenges:

• Limited outdoor storage: Cotton in fields is exposed to sunlight, rain, and heat, compromising quality.
• Tail end adhesion issues: Conventional films fail to seal properly, causing scattered bales.
• UV degradation: Films without UV stabilization weaken under sunlight.
• Water ingress: Insufficient edge coverage (15–20 cm) allows rainwater to penetrate.
• Mechanical tearing: Low tensile strength (<20 MPa) tears during high-speed mechanized wrapping.
• Machine compatibility issues: Some films are not suitable for all mechanized pickers, leading to jams or uneven wrapping.

These challenges arise from:

• Weak tail-end adhesives in conventional films.
• Lack of UV stabilizers for outdoor exposure.
• Incomplete edge coverage allowing water ingress.
• Low tensile strength and poor multilayer structure in competitor films.
• Films not designed to accommodate multiple machine models or feeding widths.

Our cotton bale wrap film solves these problems:

• UV resistance (6–18 months) ensures bale integrity in outdoor storage.
• High tensile strength ≥30 MPa prevents tearing during mechanized wrapping.
• Pre-sealed tail end and 15–20 cm edge coverage protect against water infiltration and cotton scatter.
• Flowable multilayer A+B structure with self-adhesive formulation enables smooth feeding on 3-row and 6-row pickers, and perfectly adapts to most cotton harvesting machines on the market, including 7760, 690, 770.
• Optional embedded RFID tags allow digital tracking.

Each roll wraps 24 cotton bales (~100 kg each) consistently across different mechanized models.

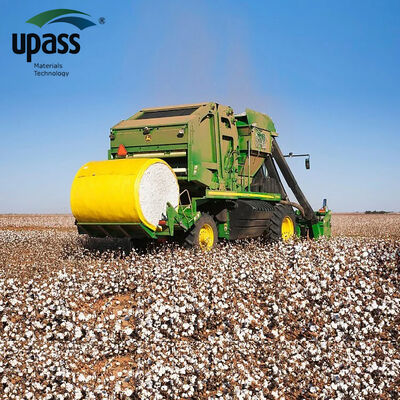

• Mechanized cotton harvesting with 3-row and 6-row pickers (models 7760, 690, 770)
• Outdoor cotton bale storage and protection
• Long-distance transport of cotton bales
• Moisture-proof, UV-stable wrapping
• Prevention of cotton scattering
• Optional RFID tracking for inventory management

1. Wraps tightly around cotton bales, preventing scatter and moisture ingress.
2. Pre-sealed tails and extended edge coverage ensure bales remain protected.
3. UV-resistant additives maintain film integrity during outdoor storage.
4. Flowable multilayer structure ensures smooth feed through mechanized pickers.
5. Optional RFID tags enable digital identification and tracking.

1. Thickness & Tear Resistance: 0.075–0.08 mm for durability.
2. Tensile Strength: ≥30 MPa to resist tearing.
3. UV Protection: 6–18 months in outdoor environments.
4. Self-Adhesive Formulation: Secure tail closure.
5. Edge Coverage: 15–20 cm top/bottom to prevent water ingress.
6. Machine Compatibility: Width and feed must suit 3-row, 6-row, and models 7760, 690, 770.
7. Field Reliability: Zero complaints in field operations.

Q1: How many cotton bales does one roll wrap?
A1: 24 bales (~100 kg each).

Q2: Can it withstand outdoor storage?
A2: Yes, UV-stabilized for 6–18 months.

Q3: Is it compatible with mechanized cotton pickers?
A3: Yes, optimized for 3-row and 6-row machines, including models 7760, 690, 770.

Q4: Does it tear easily?
A4: No, ≥30 MPa tensile strength prevents tearing.

Q5: Are RFID tags included?
A5: Optional RFID tags are embedded for inventory tracking.
